Product Description:

VK5.C series of dynamic flow balance can be precisely controlled flow conduit within the working pressure range, so that the whole system can keep the balance, without having to drag the whole pipeline tedious calculations. No manual adjustment, can save a lot of manpower, is also not limited installation space, but also to avoid the man-made destructive regulation. Possible to prevent excessive traffic caused by wear and tear on equipment, and improve the durability and safety of the equipment. Really a water system is simple, reliable, no need to install the pipeline with the process, saving the initial investment, installation and material costs.

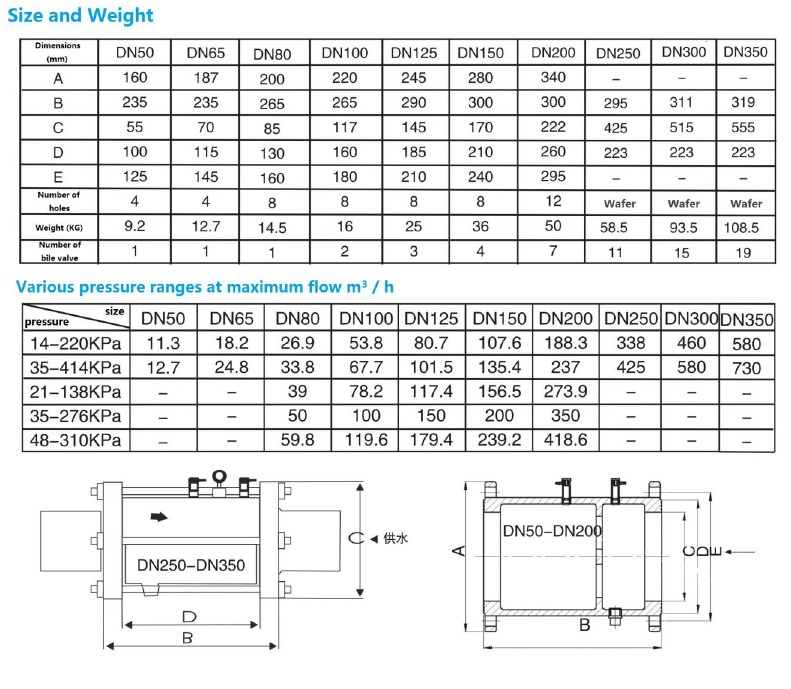

Technical Parameters:

Basic Specifications: DN50-DN200

Under pressure: 16Bar / 25Bar

Flow error: 5%

Working temperature: 0-120 ℃

material:

Body: QT500-7

Valves guts: Stainless steel (304-2B)

Spring ring: Stainless steel (1Cr18Nig)
